Key Reasons for using Oscillation System
✓ Uniform Coverage and Prevention of Streaking
✓ Preventing Fabric and Roll Damage
✓ Matched Speed Cleaning
✓ Contaminant Removal
• This oscillator’s speed can be controlled
from 10 mm/ min to 100 mm / min or as per machine speed.
• Oscillators for tube-in-tube shower
systems are also available.
• Body made of SS304 / SS316 as per
requirement.
• Oscillation stroke available from 150 mm,
200 mm, 300 mm, 400 mm & 500 mm.
These are used with all oscillating showers & widely used in paper industries.

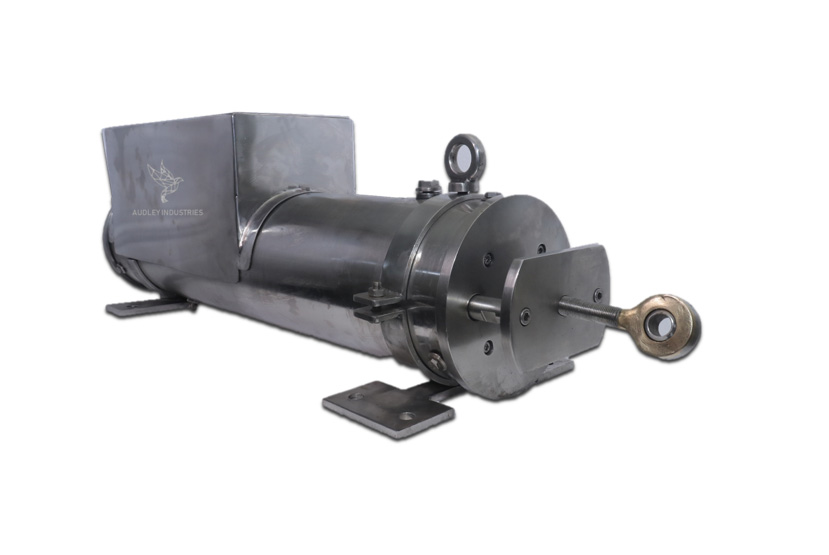

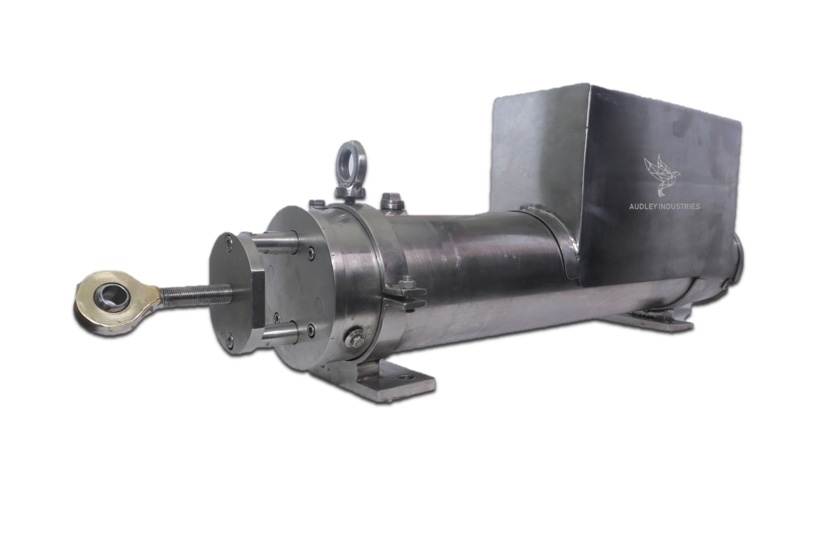

LIGHT WEIGHT MODEL
FEATURES

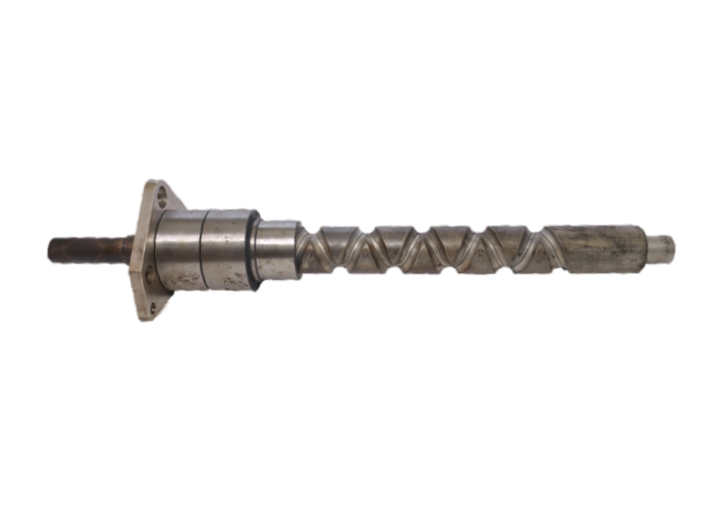

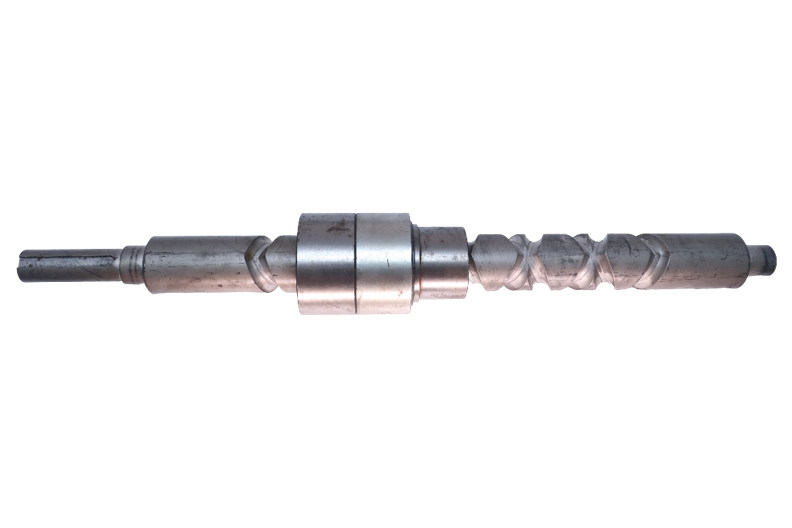

✓ All oscillators has BALLSCREW shaft
system in it’s core.
✓ This oscillator’s speed can be controlled from
10 mm/ min to 100 mm / min or as per machine speed.
✓ Body made
of SS304 / SS316 as per requirement.

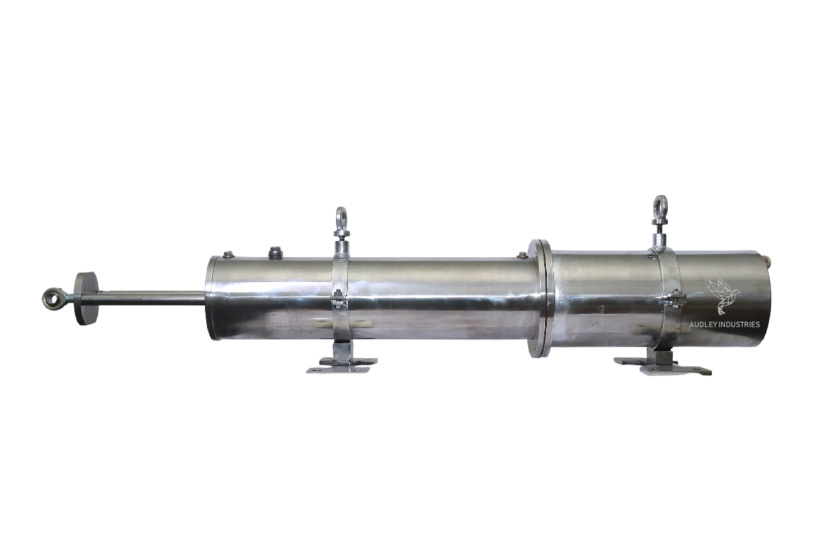

Used with tube in tube model showers

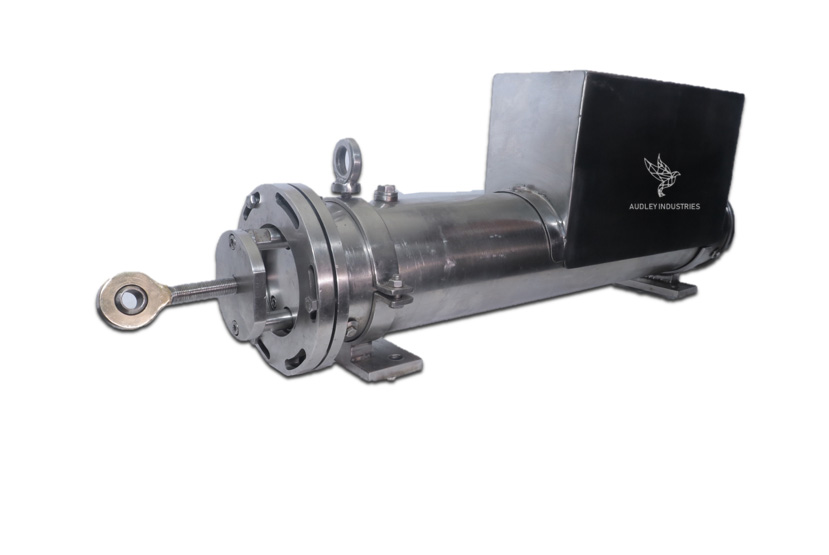

This
New Oscillator Is Water Proof

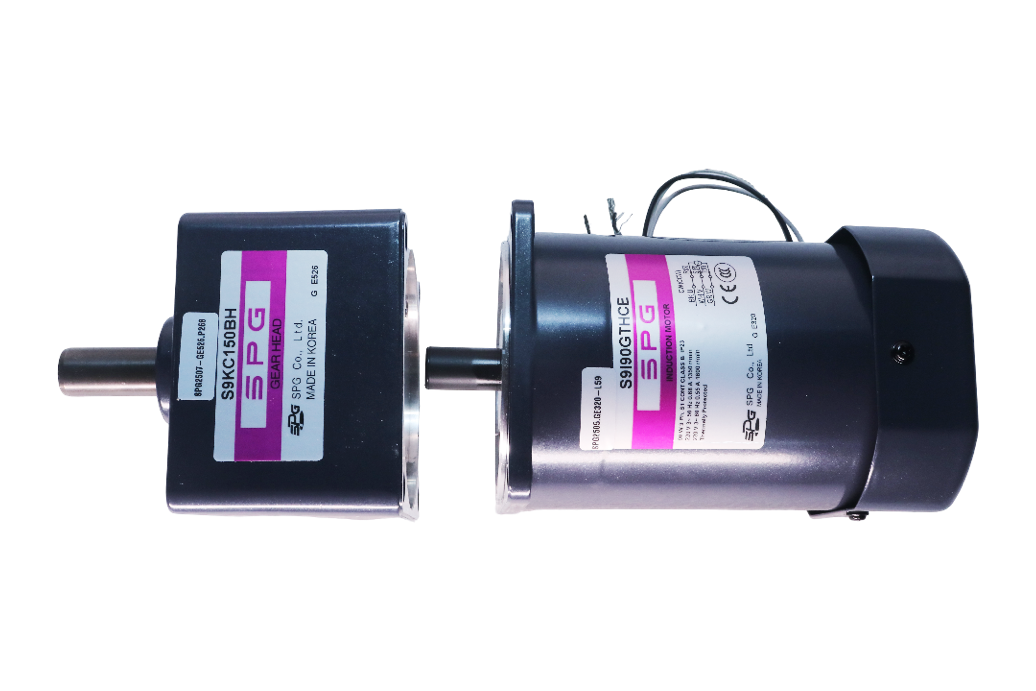

Ballscrew Shaft And The Motor Aligned On The
Same Axis

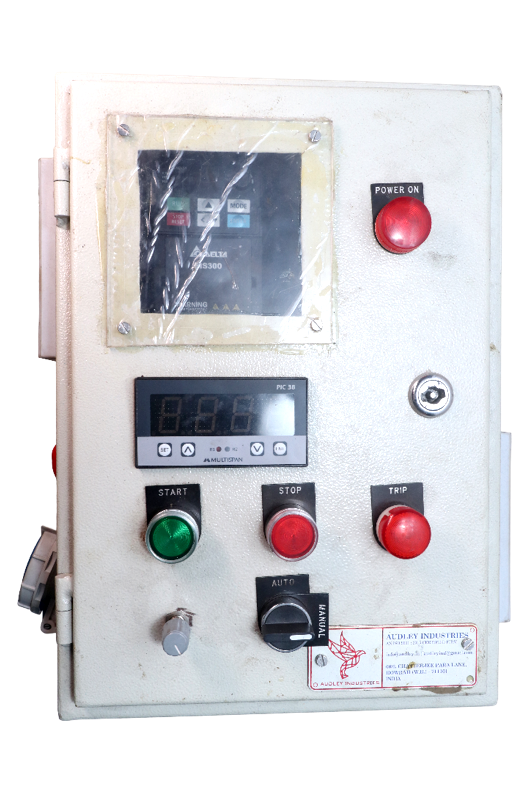

• The control panel is provided so as to
control the speed of the oscillator and add protection to it.
• The panel is provided with auto and
manual control. In automatic control speed is regulated as per feedback from
machine. Manual control is possible with POT.
• HMI system can also be provided with the
panel as per customer requirement.
