Nozzles

Nozzle Used for:

✓ Precision and Performance
✓ ​​Preventing Clogging and Downtime
✓ ​Reducing water consumption

 Download Catalogue

NOZZLES

Working pressure

Area of application

Spray formation

Other information

Pictures

High Pressure Generally around 20 to 25 bar

Fabric or roll cleaning

Needle jet

Available in ruby, ceramic and SS tip

Ultra High Pressure Around 150 bar to 300 bar

Fiberline (of pulp section)

Fish tail or V-jet of MEG type

Available only in SS

Low Pressure Around
0-10bar

Lubrication, flooding, Sheet Knock, etc

V-jet or Fish Tail

Available only in SS

Foam control

Cone

Available only in SS

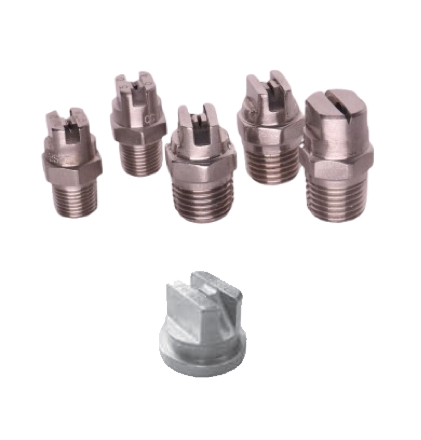

Deck shower

V type

Available only in SS

Wide angle

Wide V type

Available only in SS

Narrow spray

Narrow V

Available only in SS

Steam showers, aqualizers or equalizers



Available only in SS

Edge cutting Nozzles or Trim squirt nozzles

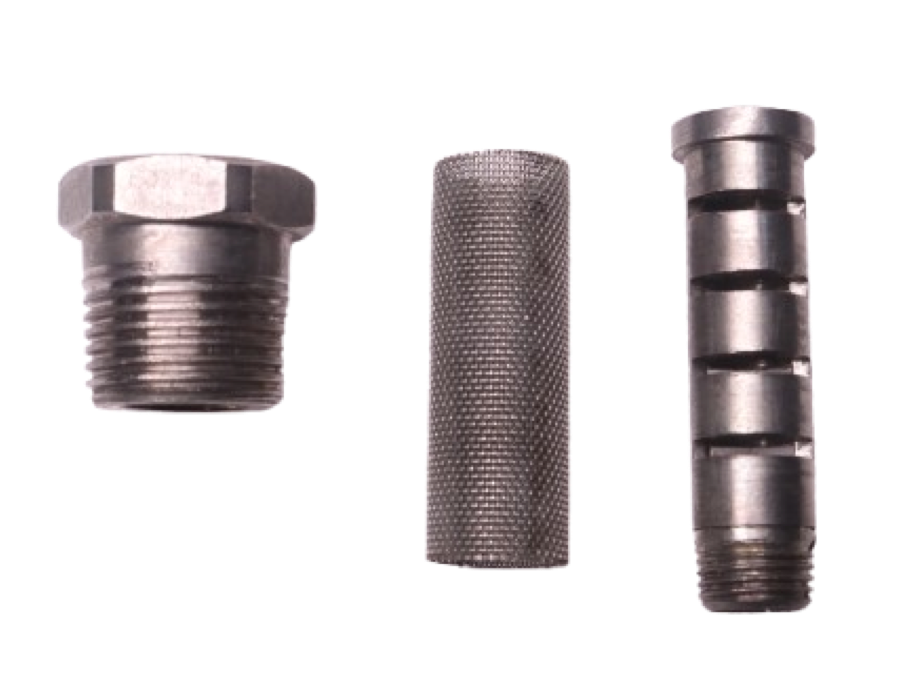

Edge cutter nozzle with filters separately shown

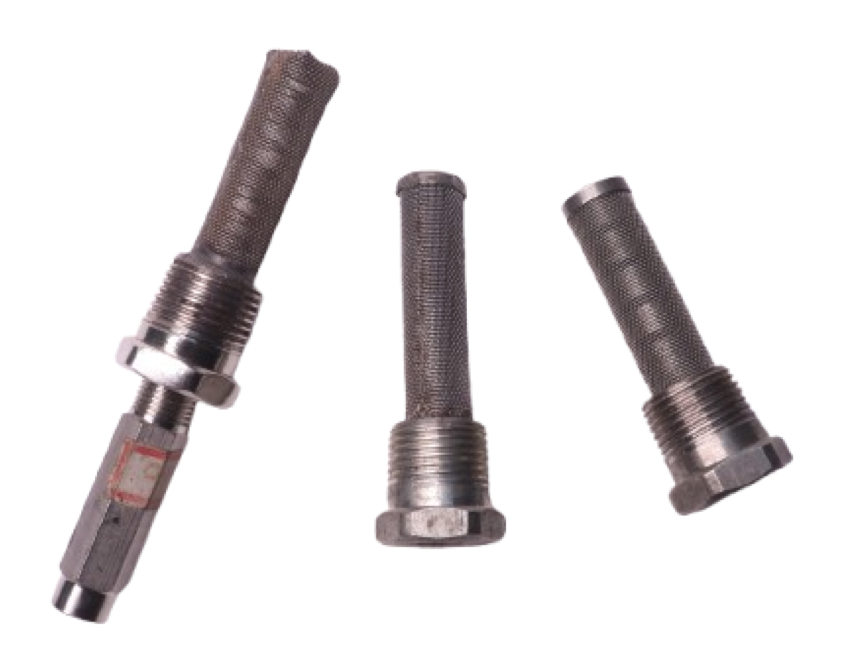

Edge cutter nozzle with filter

A special filter for edge cutter nozzle where only the filter screen needs to be changed.

NOZZLE SELECTION IDEAS

Diverse Applications Require Diverse Nozzles

A single shower on a paper machine performs multiple functions, each requiring a different nozzle type:

Application Nozzle Type Purpose
Fabric/Roll Cleaning Needle Jet (Solid Stream) High-impact scouring to remove contaminants.
Chemical/Coating Flat Fan or Atomizing Uniform, precise application of starch, sizing, or moisturizers.
Edge Trimming High-Pressure Solid Stream (Ruby Orifice) Non-turbulent, sharp jet to cut the sheet edge.
Foam Control Full Cone Rapid reduction of foam in stock chests or headboxes.
Moisturizing Fine Atomizing (Air/Liquid) Creating a fine mist for precise moisture control on the dry end.
We design various types of nozzle as per customer specifications or drawings or samples.  We promise to provide best cleaning solutions based on your machine and product parameters.
